Back-slide prevention to TBM

About the project

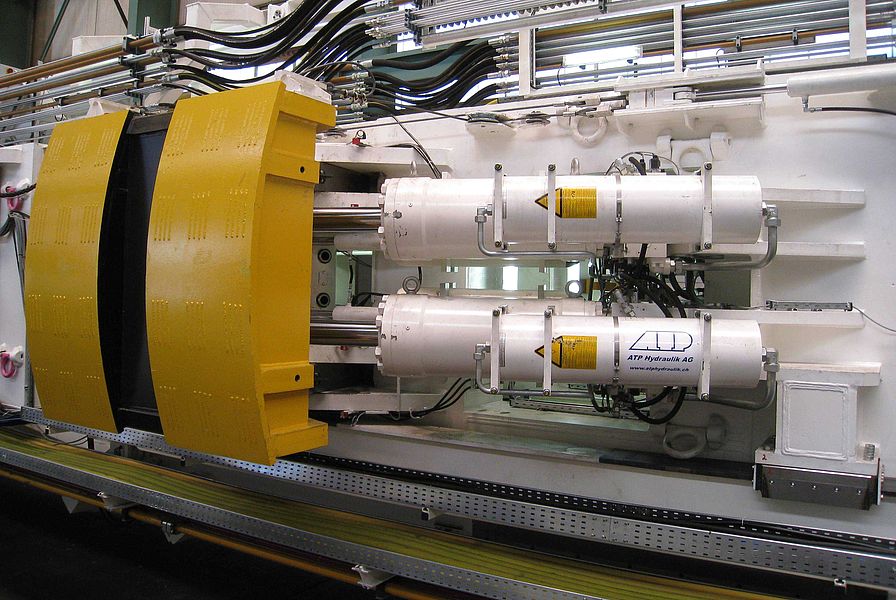

To prevent back sliding of a tunnel boring machine, working on a slope, we designed a special hydraulic cylinder with safety features. The redundant valves that are integrated directly into the cylinder base with the gas filled accumulator provide secure operation. Various other manifold blocks and the PLC control and visualisation put the finishing touch on ATP's offering in this unique and prestigious project.
Specially designed hydraulic cylinders, manifolds, controls, visualisation.

Learn more about it in our detailled project description and read the Journal report

Facts

Place: Linthal, canton of Glarus, Switzerland
Date: 2010
Scope of delivery:

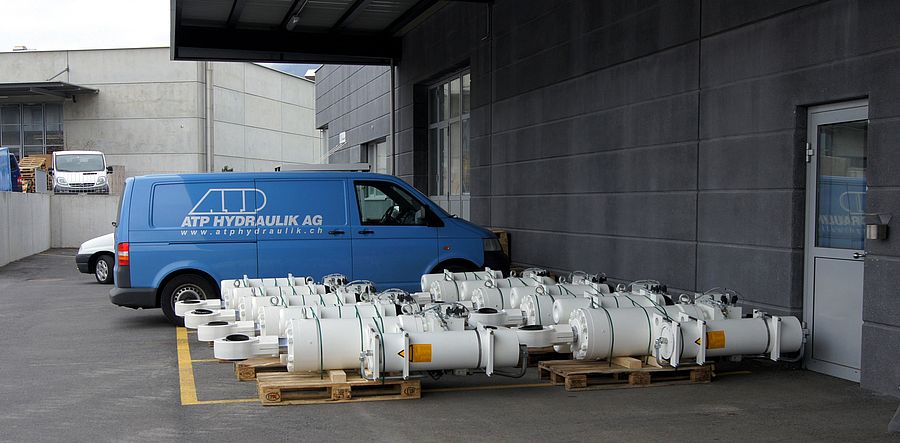

  • 8x specially designed hydraulic cylinders with integraded manifolds to prevent back-sliding of the TBM
